A range of stainless steel adjustable Stirrup support bases

Our range of adjustable Stainless Steel post bases are designed to be resistant to extreme exposure to the elements. By keeping the timber post above the ground level out of the damp areas and allowing the post foot to dry out after rain it helps prevent decay and prolong the life of the post.

Please select a bottom base and then select your top stirrup. Due to customer request you can now buy the top stirrup only by selecting "no base" first. Note the "locking nut" is supplied with the base not the top stirrup.

 Fitting kit- See Stainless steel post base fixing section for details.

Please select SSSA  (Threaded bar with nuts)

or

SSSB (Coach screws). Care check the screws will not touch depending on your selection.

Not fitting your size post? These look attractive when routered in to the post.

• Technical- IMPORTANT. Please note on all our range of stainless steel post bases the maximum safe height above the finished floor level for any of the post supports is 150 mm. The SSB1 bases may be bolted to the finished floor surface, all the other products in the range of post bases must be concreted into the ground. The post bases have a base plate with a central threaded post and nut welded to the base and a loose lock nut (included). The three interchangeable post plates and two post cups also have a nut welded to the plate and screw clockwise onto the post. The plates are adjustable in height from 55mm above the base to within 45mm of the top of each different height post in the range using one of the three the post plates.
• Care should be taken to run a nut down the thread prior to cutting the post, this will help to remove the burr at the end of the rod on removing the nut. Our post bases have 150mm x 150mm x 6 mm base plates with a 25mm hole in the centre of the plate and four 12mm holes at each corner to take 10mm sleeve bolts.

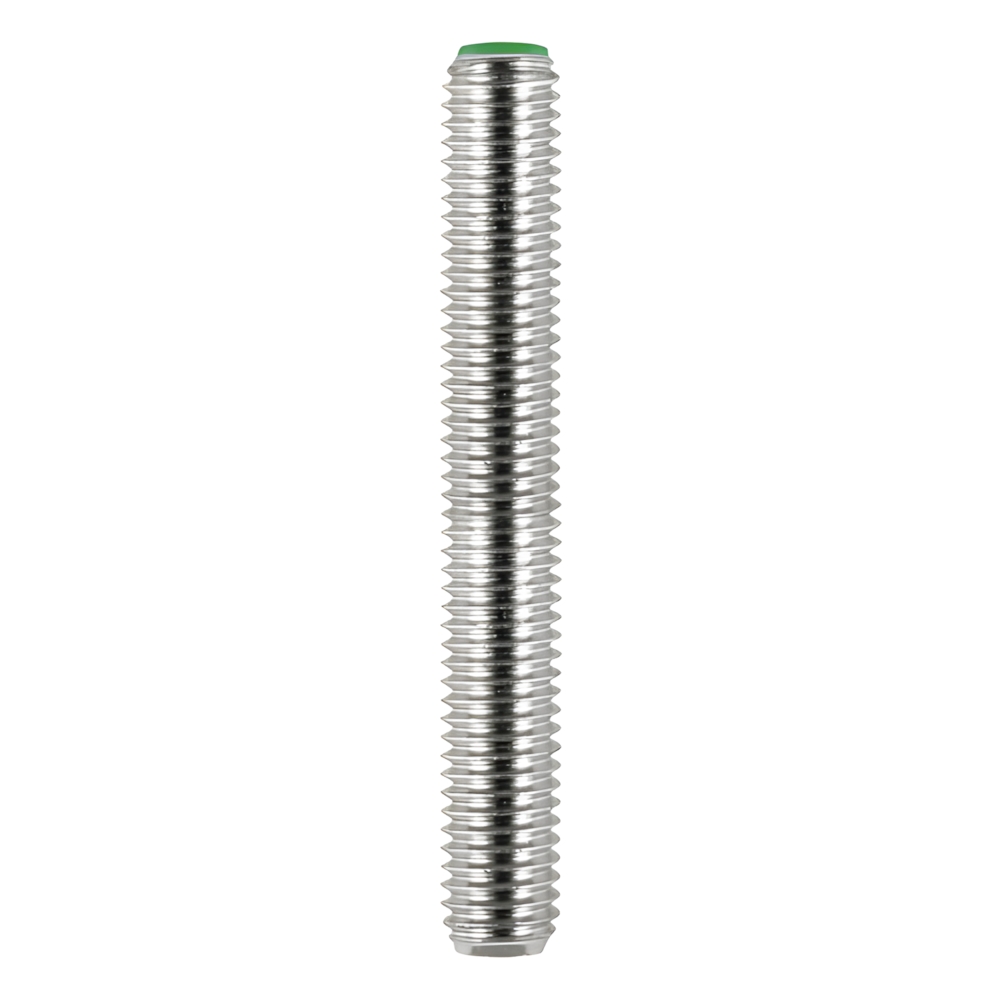

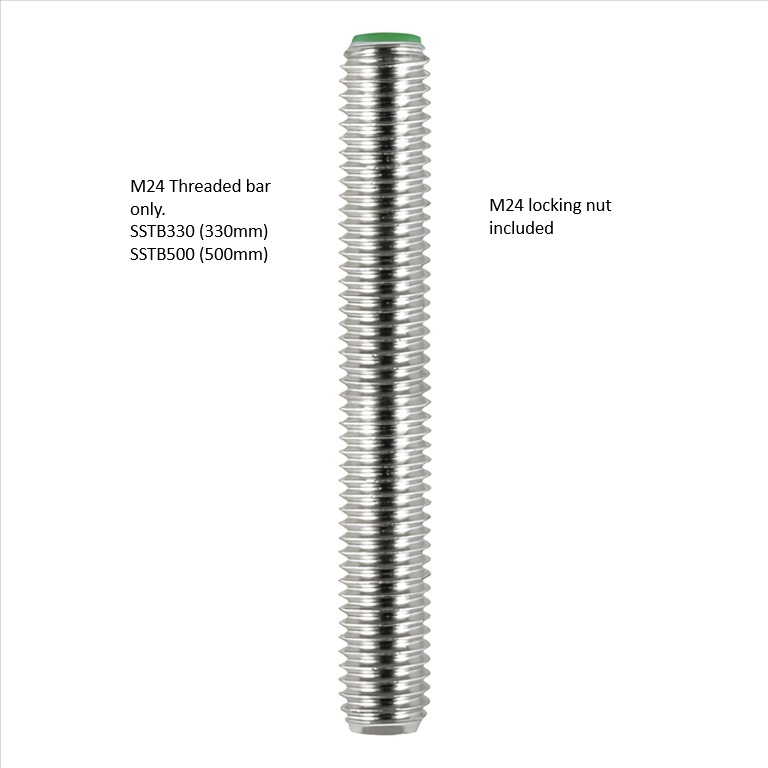

• The central post is A2 M24 S/S threaded rod and is welded to the post base on the underside. A A2 M24 full hex nut is fitted to the base of the post and welded to the base plate on the top face.
• Fitting - Pre drill a 25mm hole in the center of the post base to the depth required to allow the threaded bar to pass inside the post. Set the post base in the required position rotate the post plate clockwise to engage the thread, set the post stirrup to the required height. The timber post should be positioned on the stirrup to check the height, if correct tighten the M24 lock nut under the post stirrup. The post Stirrup screw clockwise onto the threaded rod posts along with a A2 M24 half lock nut fitted under the plates.
• The safe working load is calculated using a factor of safety of six.

Price excludes delivery, product is available for next day delivery

If showing out of stock, please contact us as normally delivery can be made within 7 to 10 days.

Bulk orders please contact us as discounts may apply and the most economic delivery charges can be agreed.

Please see our range of Posts and Bollards. Note some minor adjustments might be required on site.
