PRODUCT CODE: CBH150/2.5
Simpson Strong-Tie CBH concealed Beam and joist Hanger for timber and masonry

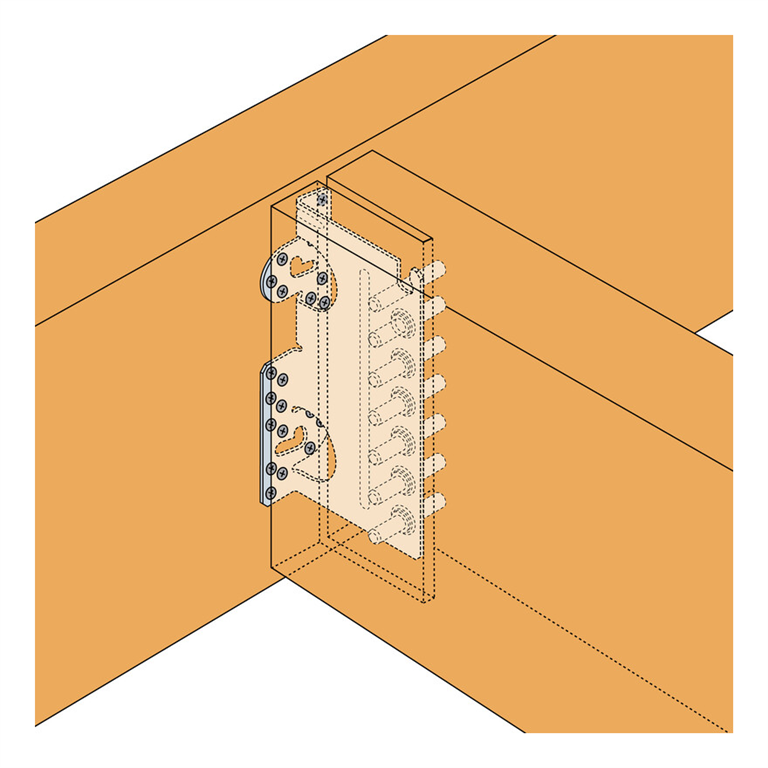

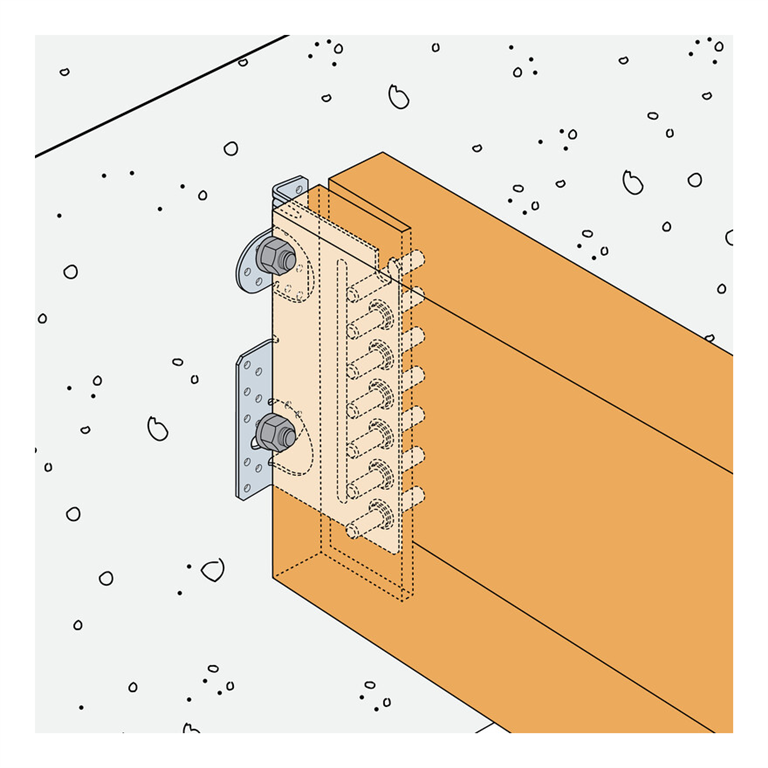

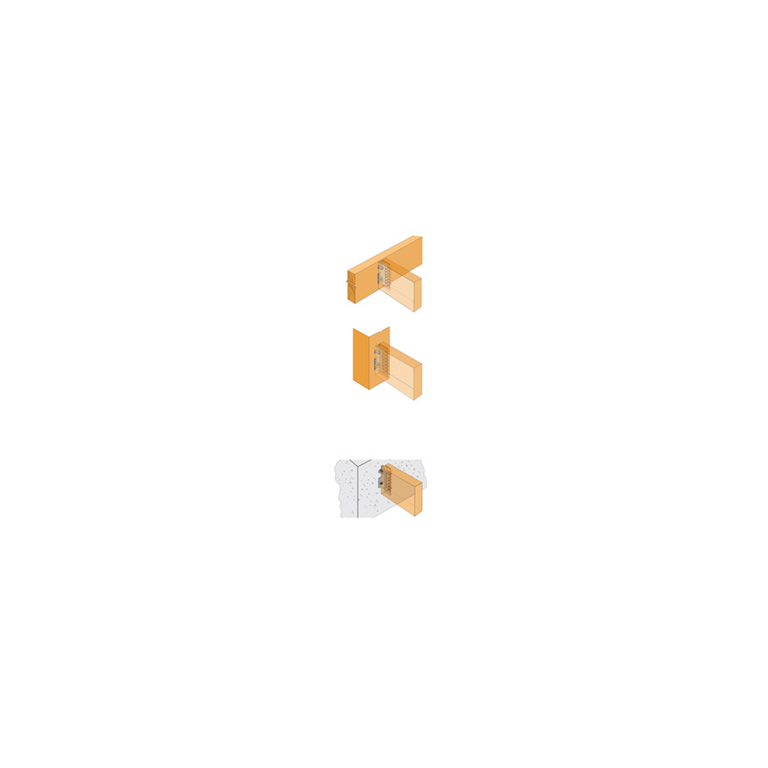

The CBH hanger is a development of the TU range. It allows for a concealed timber to timber, Concrete to timber or masonry to timber connection. CBH can be face fixed or pocketed onto timber headers.

PLEASE ADVISE IN NOTES OF THE DOWEL LENGTHS REQUIRED WHEN YOU ORDER. THESE CAN BE MIXED ACROSS A VARIED CODE FOR THE HANGERS.

USUALLY THE DOWEL WOULD BE 20MM LESS THAN YOUR TIMBER THICKNESS - 60mm,80mm,100mm,120mm, 140mm, 160mm.

Note: Nails and dowels included. Anchors for the concrete or masonry applications are not included.

 These are classed as made to order so we can mix and match the appropriate dowels for you. Delivery can normally made within 3-5 days.

 Bulk orders please contact us as discounts may apply and the most economic delivery charges can be agreed.

Galvanized steel S250GD + Z275 according to NF EN 10346

INSTALLATION

Fasteners
