PRODUCT CODE: PPRC

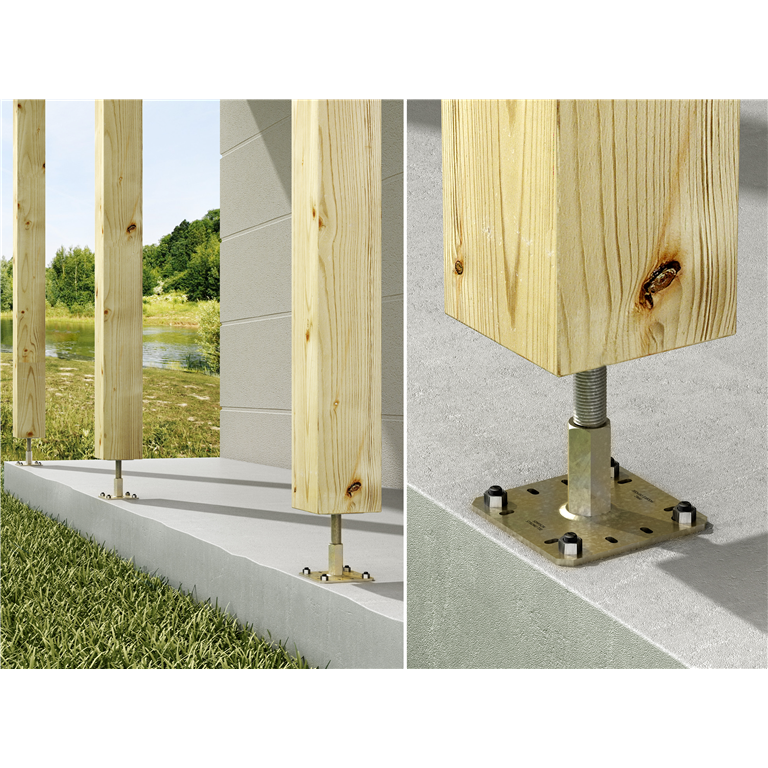

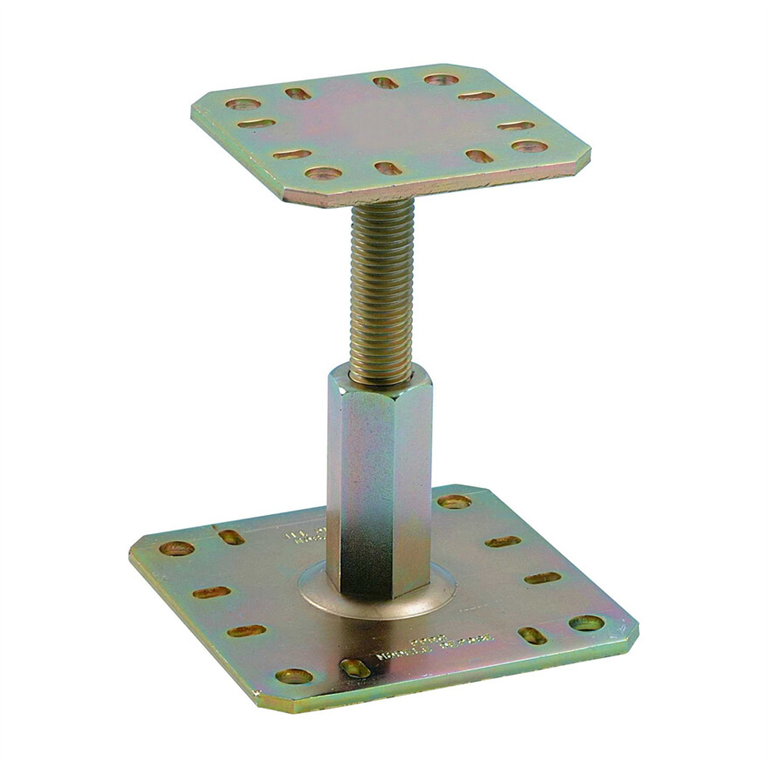

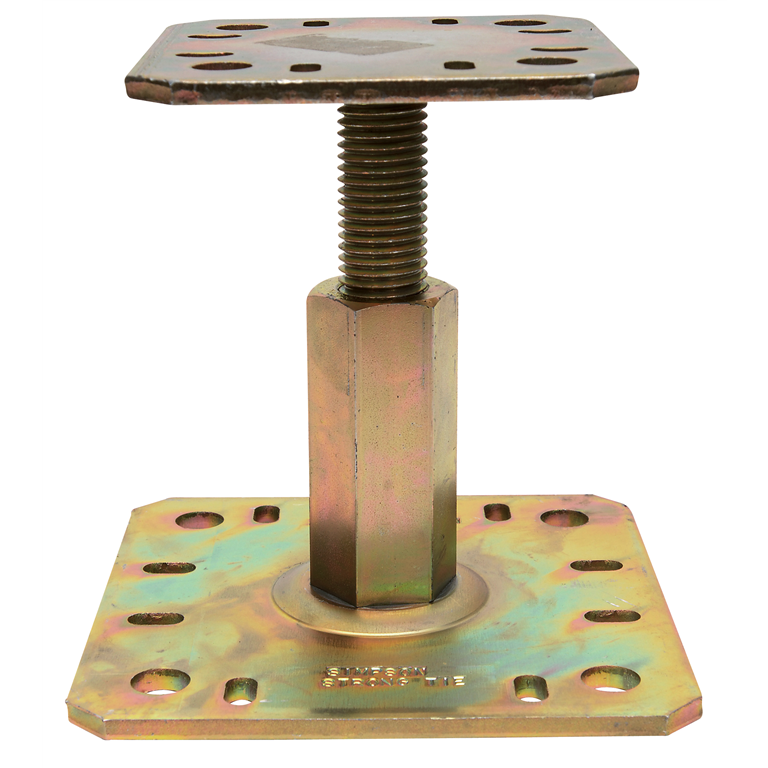

PPRC- Adjustable Post Base

PPRC Ajustable post base.

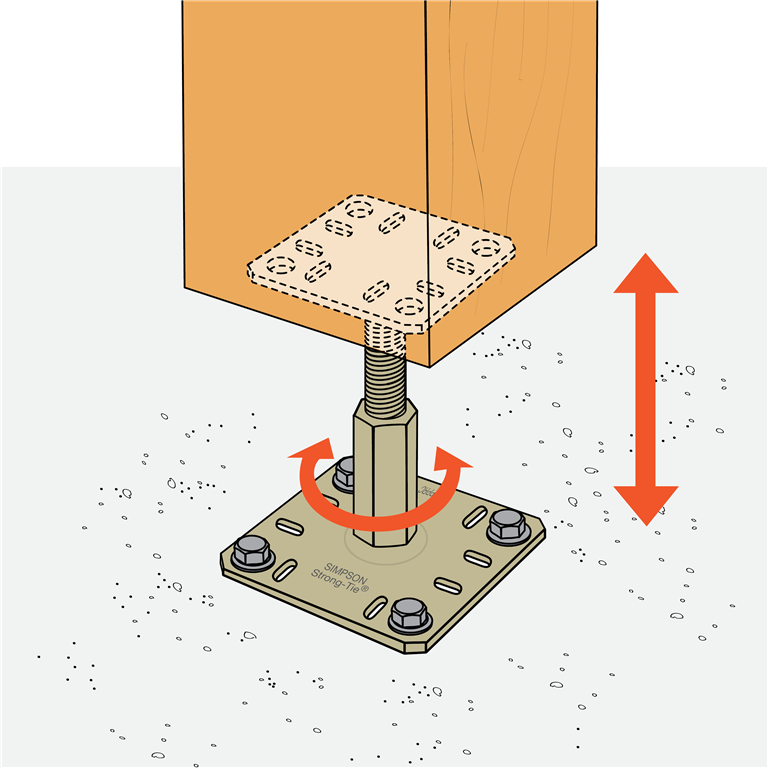

The PPRC allows the structure to be adjusted after it has been built. Adjust the off the ground height from 100 to 150mm even after the post has been installed by turning the nut clockwise/anti-clockwise with a wrench.

If showing out of stock, please contact us as normally delivery can be made within 5 days. Stocked items delivery usually within 2 working days.

 Bulk orders please contact us as discounts may apply and the most economic delivery charges can be agreed.

• Dichromate coated galvanised mild steel
• See product spec for performance values.

Installation

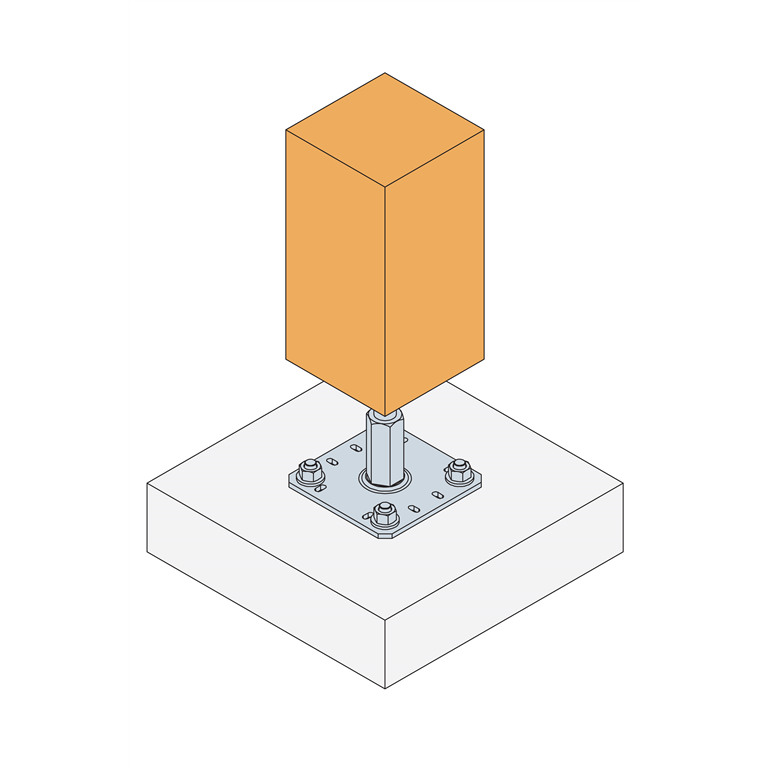

• Fix to the foundation with recommended M10 Anchors. Fix to the post using M10 coach screws.
• 130 x 130 plate fixes to the ground.
• 100 x 100 plate fastens to the post.
• PPRC can be adjusted with a 30mm wrnech after both plates are attached.
• Not recommended for installations where the top of the post/column is not restrained (eg fence posts).
