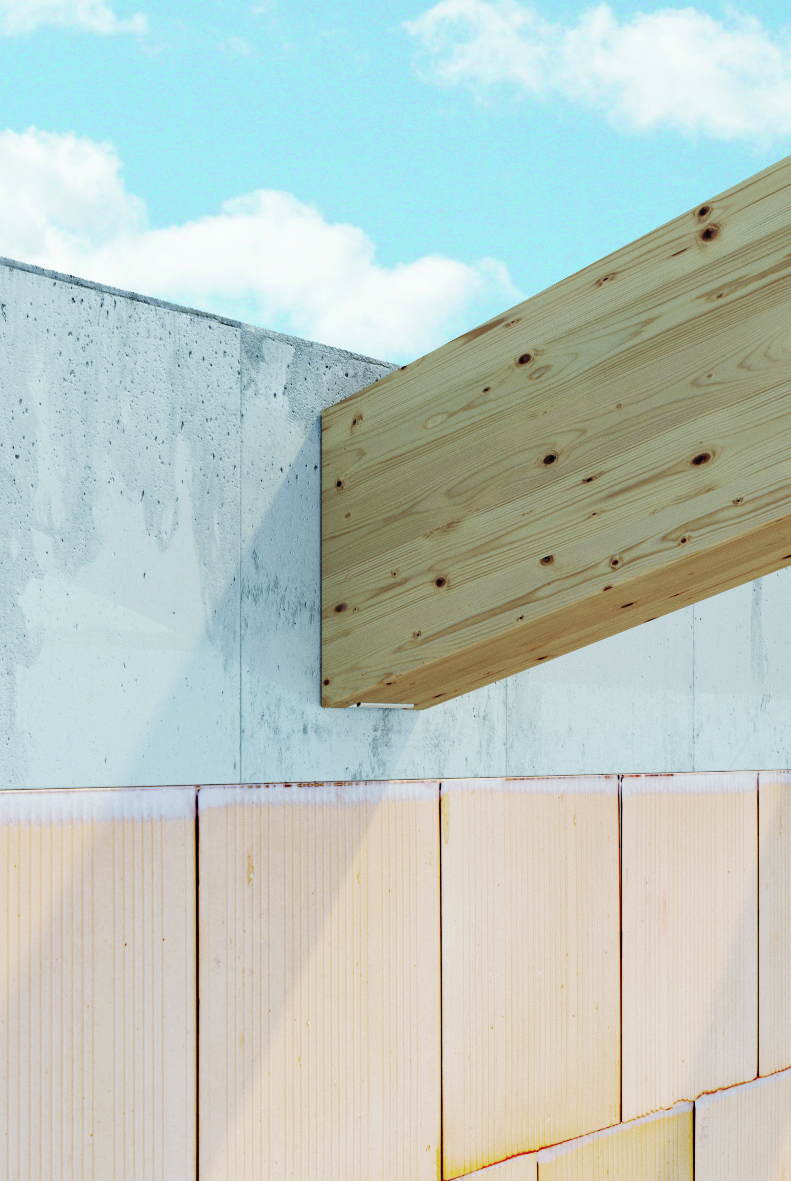

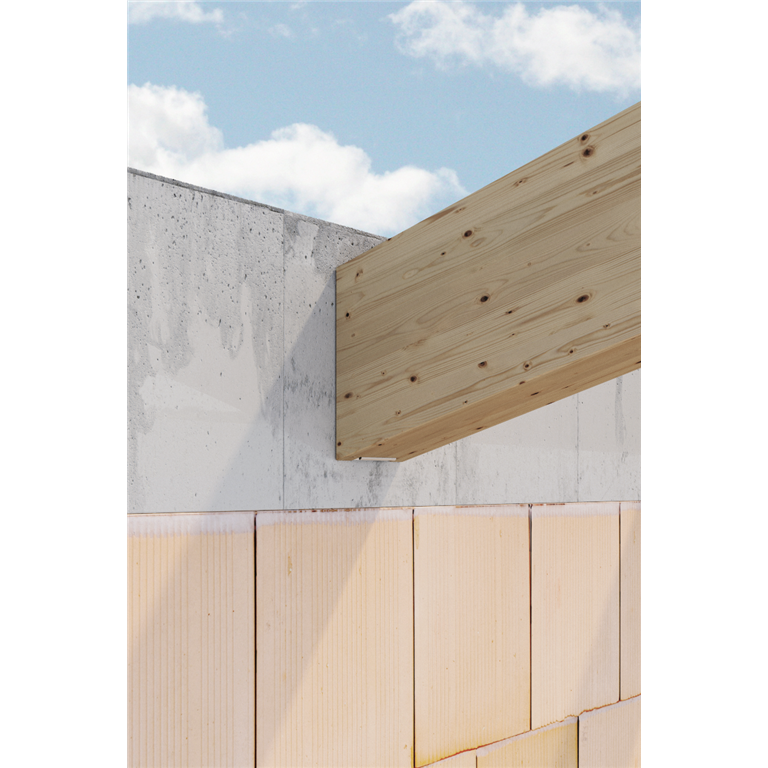

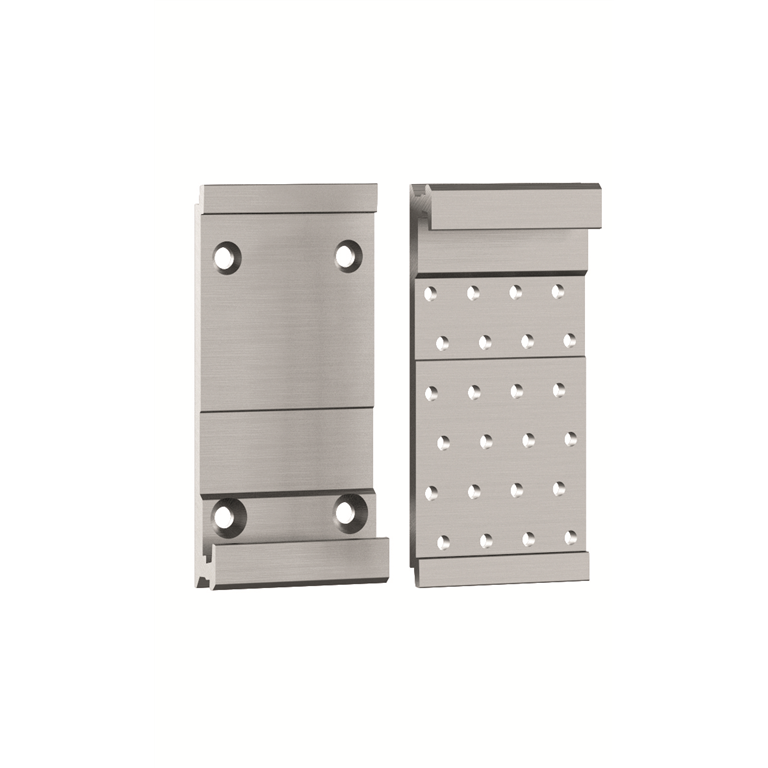

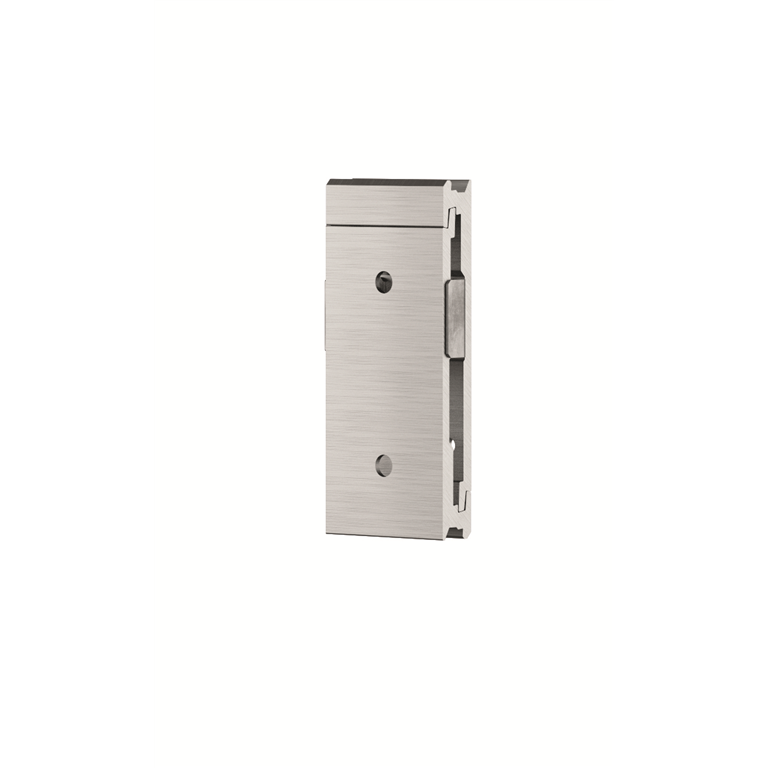

LOCK C a hidden timber to Concrete or Timber-to-steel configuration concealed connector. When installed without grooving, it generates an aesthetically pleasing joint shadow. Used for CLT, LVL, solid softwood, hardwood and GLULAM timber.
Concealed joist hanger suitable for gazebos, floors, or roofs. Use also outdoorin non aggressive environments.
If showing out of stock, please contact us as normally delivery can be made within 4 to 10 days. Stocked items delivery usually within 2 working days.
Canopy Products in partnership with Rothoblaas bring you the Holtz Technic brand
- It can be used with the construction of roofs, joists or Pergolas near concrete supports.
- Excellent assembly tolerance, easy to disassemble.
- Quick Installation on concrete. Easy to hook system with screw anchors on concrete and self tapping screws on timber. KGL Evo for timber and SKS when used with concrete. SEE fIXINGS SECTION FOR STOCK HELD.
- Screws and LOCK STOP not included in the package.
- The use of LOCK STOP is optional and does not affect structural performance.
- See Product spec for structural values.

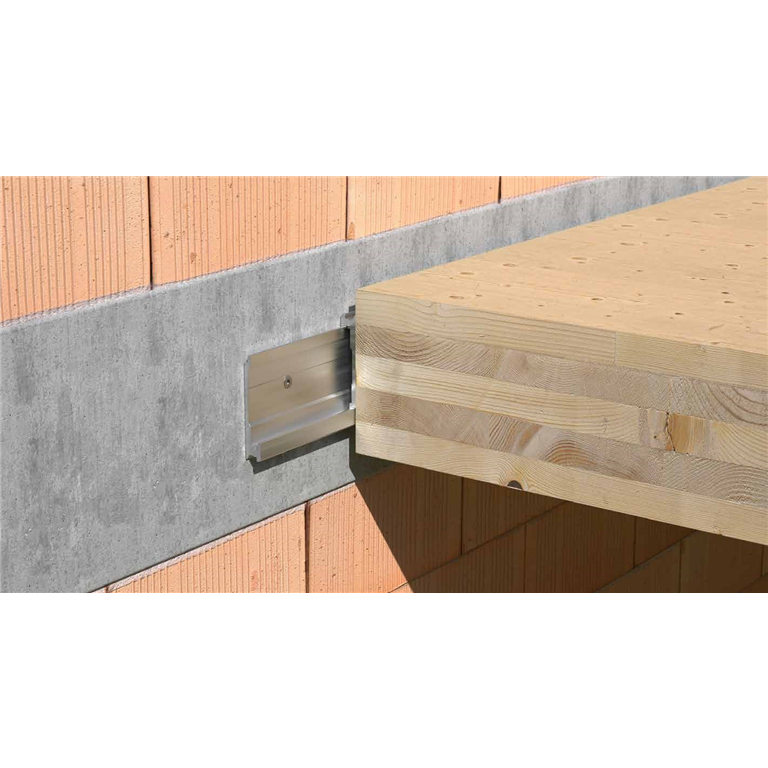

- LOCKCFLOOR135- MULTI-STOREY WALLS- Ideal for connecting CLT floor panels to multi-story walls (concrete or CLT). The hooking system enables installation without the use of shoring or temporary support structures.
- LOCKTFLOOR135- NEW POSSIBILITIES.The geometry of the connector is also suitable for non-standard applications, e.g. for the installation of stair stringers, non-structural walls, etc.
- ASSEMBLY CONNECTOR . Suitable as an assembly connector for prefabricated wall panels and modular building systems. The connector is applied in a groove in one of the two walls without any screwing operations on site.
Bulk orders please contact us as discounts may apply and the most economic delivery charges can be agreed. Table shows number of pieces (pairs) in a box for bulk pricing. Prices are per individual unit (pairs).
NOTE LOCKTFLOOR135 (timber to timber) is available to order under CLICK product category.
