Downloads:Technical Data Sheet
FD10 Pillar Base Double
Rothoblaas in partnership with Canopy Products brings you the Holz Technic brand.
Please see our range of POSTS designed to fit these bases.
Architects/designers CAD file available.
B* is the internal measurement
| CODE | B [mm] | P [mm] | H [mm] | S [mm] | PZ. |
| FD10120 | 121 | 56 | 200 | 2.5 | 1 |
| FD10140 | 141 | 66 | 200 | 2.5 | 1 |
| FD10160 | 161 | 76 | 200 | 2.5 | 1 |
| FD10180 | 181 | 86 | 200 | 2.5 | 1 |
| FD10200 | 201 | 96 | 200 | 2.5 | 1 |

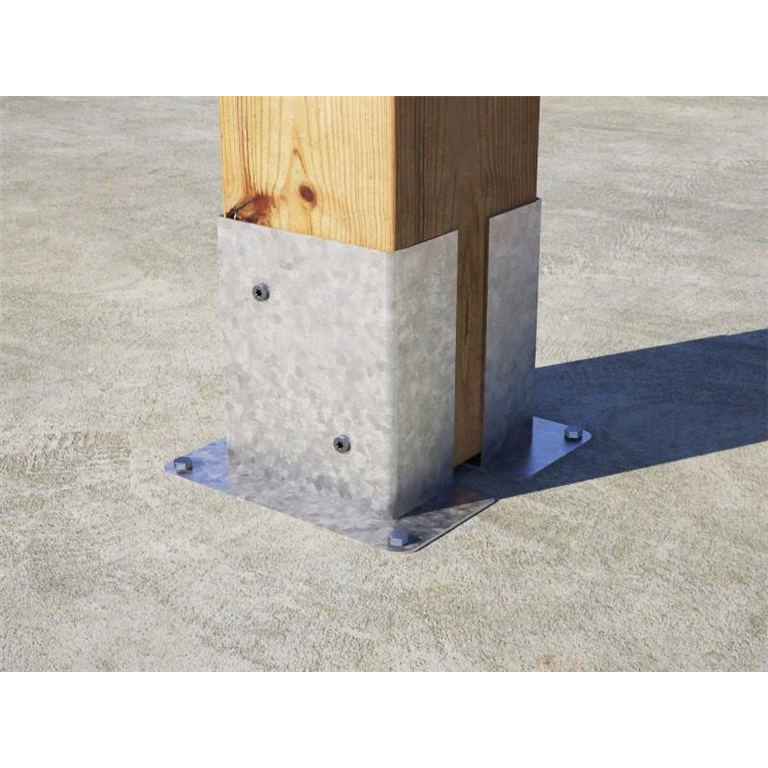

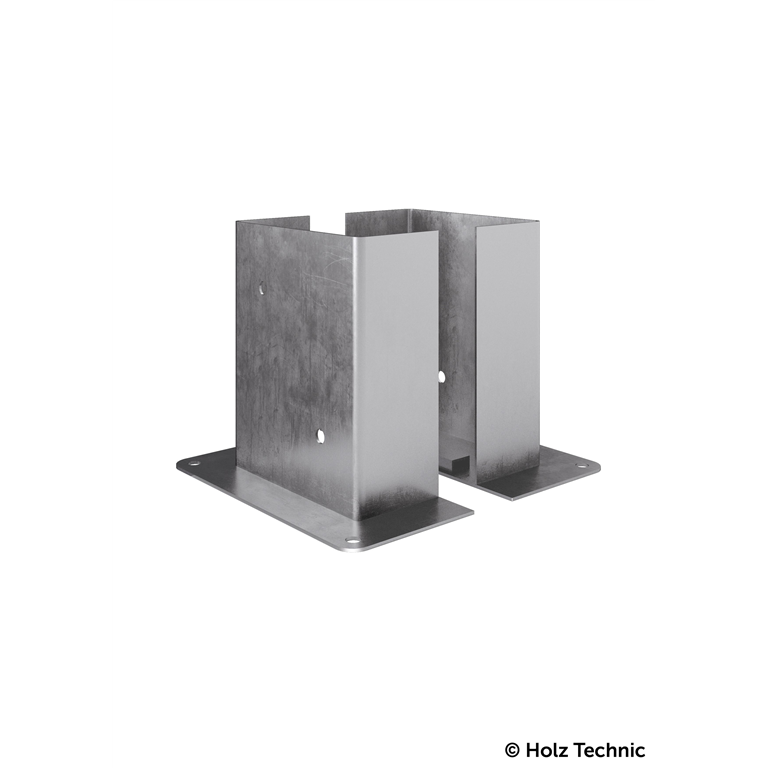

S235 Hot dip galvanised for service classes 1, 2 and 3 square sleeve pillar holder.
Used for fence posts, decking supports, bollards, railing posts, securing pergolas and garden structures together with other Timber posts/columns.
These are priced and sold as a pair.
Excludes delivery. Delivery normally 2 working days.
If showing out of stock, please contact us as normally delivery can be made within 7 to 10 days.
Bulk orders please contact us as discounts may apply and the most economic delivery charges can be agreed.
Due to variances in Timber finishes some adjustment to the post/column might be required on site with some of the bases.
