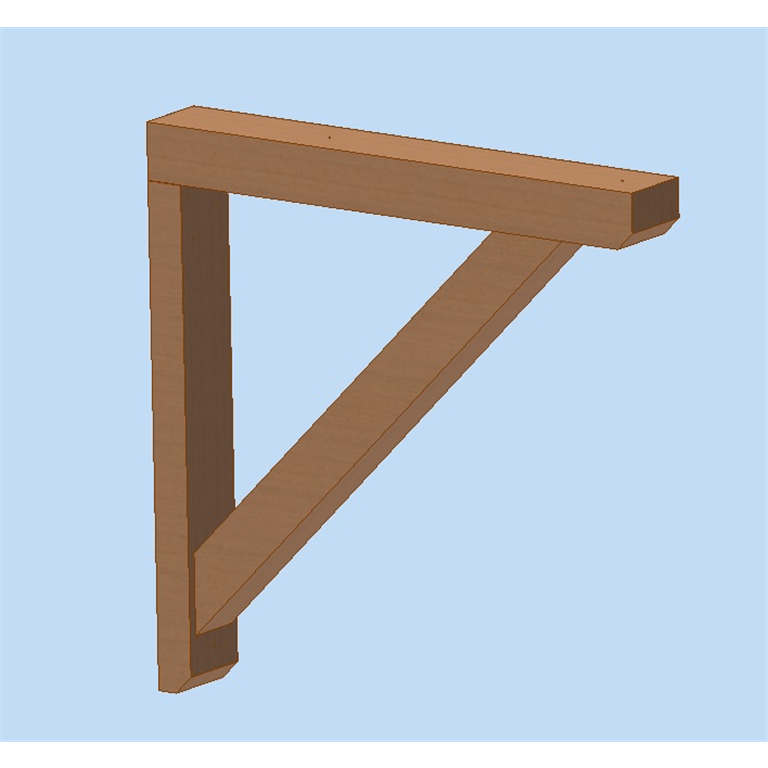

F-GST745 Timber gallows Bracket 745mm projection

 F-GST-745  gallows bracket. Head is a larger section size which helps if the soffit is being butted up to the side of the gallows.

Note all our brackets have mortise and tenon joints where applicable. We are aware of gallows brackets being sold butt jointed and screwed. This can cause the joint to open up and the bracket fail over a period.

Fixing kits-See Timber brackets fixing kits for details.

FKA- Through bolts M10 100mm x2 X 2 Oak mushroom caps 25mm

FKA2- x2 Thunderbolts + Washers M10 x 100, X 2 Oak mushroom caps 25mm

FKA1- Resin set, x2 M10x 130mm + resin capsule, X 2 Oak mushroom caps 25mm

• Our Timber products are inspected for faults, dead knots and shakes are filled using a two-part resin filler.
• All our timber products are now treated with a clear industrial wood preservative as defined in BS/EN 335-1:1994. The product protects the wood surface against wood destroying and wood discolouring fungi and satisfies the performance requirements of EN599-1. This allows the product to be stained/painted on site.
• All product codes Prefixed with F are certified FSC mix 70% INT-COC-003944.274.
• The safe working load is calculated with a safety factor of 6. It's worth noting that the specific application and structural requirements of a project will determine whether a timber gallows bracket is the appropriate choice. Consulting with a structural engineer or a qualified professional can help ensure that the right support system is selected for the intended purpose.

Prices quoted are for single items not per pair. Excludes delivery costs. Delivery normally 2 working days.

What is a Timber gallows bracket and why use one?

A timber gallows bracket is a structural component used in construction and carpentry to support horizontal beams or joists. It is typically made of wood and shaped like an inverted "L" or a right-angle bracket. Here are a few reasons why timber gallows brackets might be used:

1. Support and Load Distribution: Gallows brackets are designed to provide support and distribute the weight of horizontal beams or joists. They help transfer the load from above to the supporting structure below, such as walls or posts.
2. Versatility: Timber gallows brackets can be used in various applications, including the construction of roofs, balconies, canopies, and shelving units. They offer flexibility in design and can be adjusted to accommodate different angles and loads.
3. Aesthetics: Gallows brackets can also serve decorative purposes by adding architectural detail and enhancing the visual appeal of a structure. They can be designed in different styles and finishes to match the overall aesthetic of the building or space.
4. Ease of Installation: Timber gallows brackets are relatively easy to install compared to other support systems. They can be securely fixed to walls or posts using screws, bolts, or other appropriate fasteners, providing a stable and reliable support structure.
5. Traditional Construction: Gallows brackets have a long history in traditional timber frame construction. They have been used for centuries and are still employed today in both historical restoration projects and new construction that seeks to replicate traditional architectural styles.
