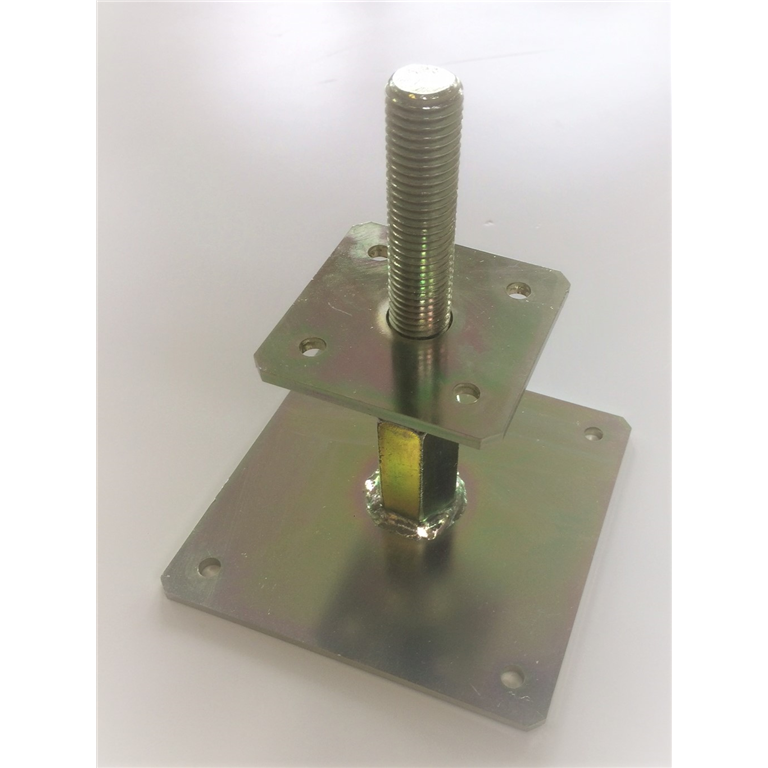

APB1 Adjustable post base

£0.00
Ex VAT


READ MORE

Bottom plate 150 x 150
Top plate sizes

APB1 Adjustable plated post supports.

Used for posts, decking supports, bollards, porch posts, securing pergolas and garden structures including shed bases together with other Timber posts/columns.

Top plates are available in bulk orders please contact us for a quote.

  • Base plate 150mm x 150mm.
  • Electroplated with Rogard Supreme Seal 500.
  • Please see Prod spec for technical sizes. Safe working load depends on the top plate and is detailed below. Proof load applied to APB1-BP and top plate and calculated with a safety factor of 6. Certificate number TC22517.  Please ensure you refer to a structural engineer to ensure the product is suitable for your application.

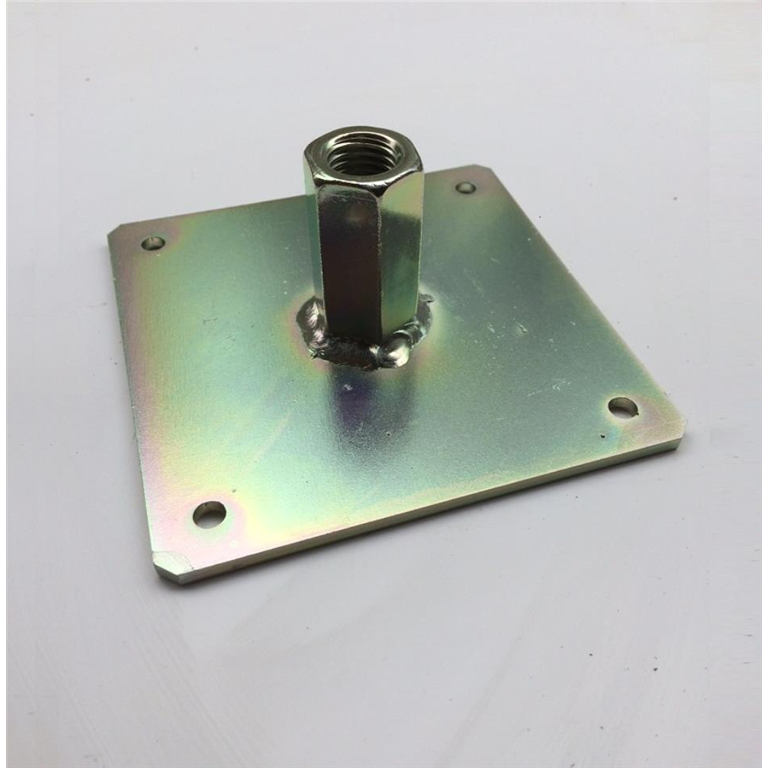

 Safe working loads based on APB1-BP bottom plate.

APB1-TP- Swl:360kg/3.53 kn

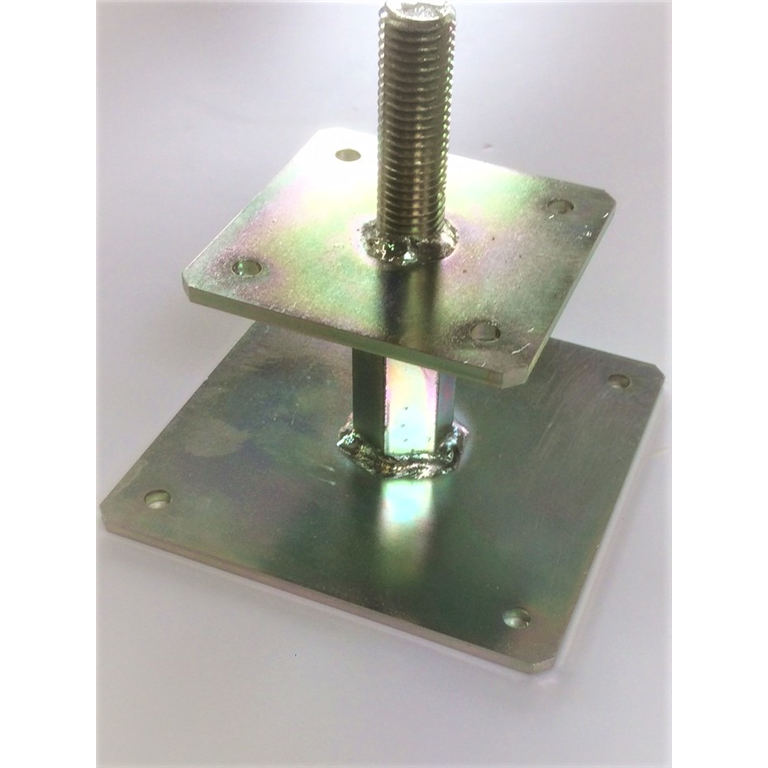

APB2-TP- Swl:483kg/4.74kn

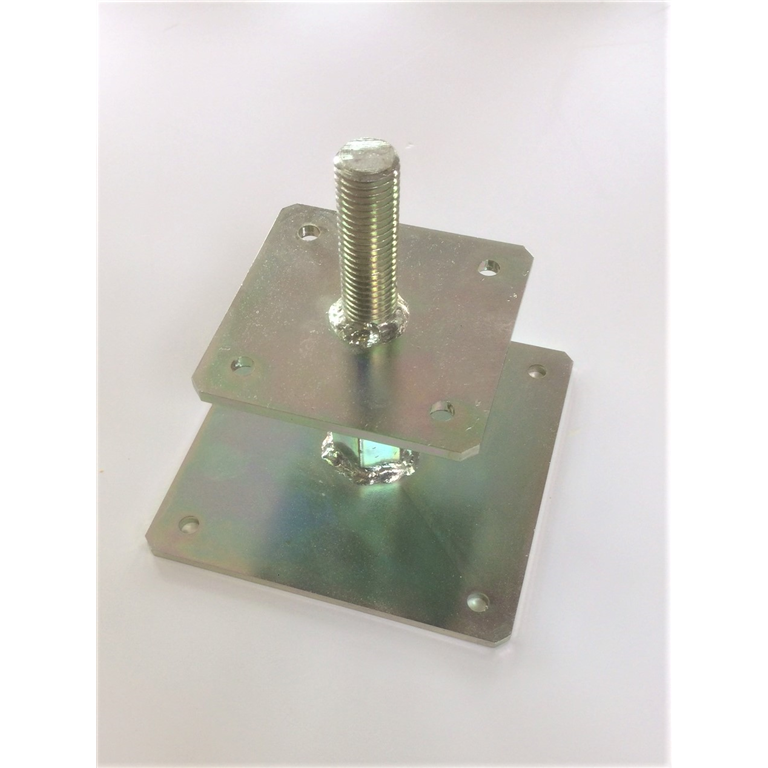

APB3-TP- Swl:500kg/4.9kn

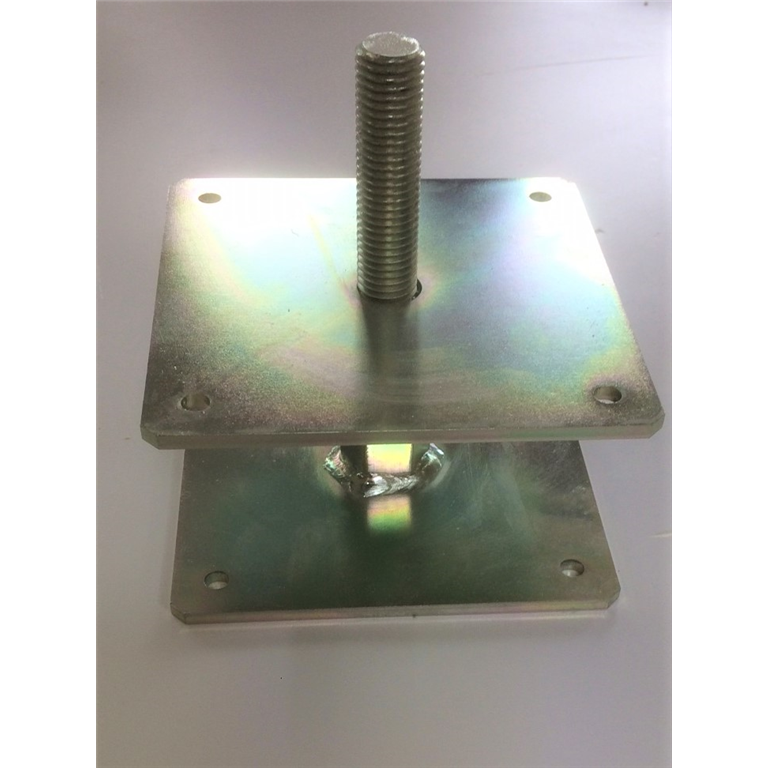

APB4-TP- Swl:583kg/5.72kn

Price excludes delivery to mainland UK, available for dispatch same day.  For areas outside Uk mainland please contact us.
